93 ignition switch wiring

[hawwk]

I was wondering does anyone have a 93 FLHTC manual to look up the ignition switch wiring? I just got a new 93 switch for my 89 and trying to wire it in.The new switch dropped one wire from it so it is now a 3 wire system.The instuctions for the 93 switch has wiring colour but not what their for.I think this is how it must go red wire for bat,,,,,orange wire for acc,,,,white wire for ign,,,,and the blue/white wie is for lights which is the wire they dropped from the new switch. Am I correct in this thinking because I am going by the 89 manual.

[hdbikedoc]

sounds right to me I don't have manual at home with me but you are correct just use the white wire to power ign and the lights thats how that switch was set up .

[FSG]

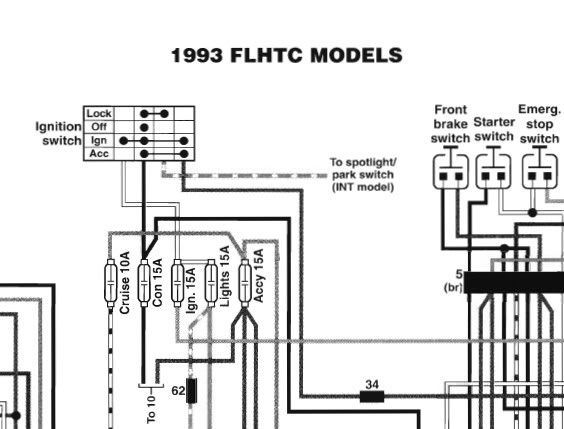

No colour (sp) but this may help.

[eglideic]

Harley doesn't change it's wire code colors that I'm aware of. White for Ignition, Blue for Lights, Red for Battery. Its been the same for over thirty years.

[hawwk]

  Thanks everyone for the replies
