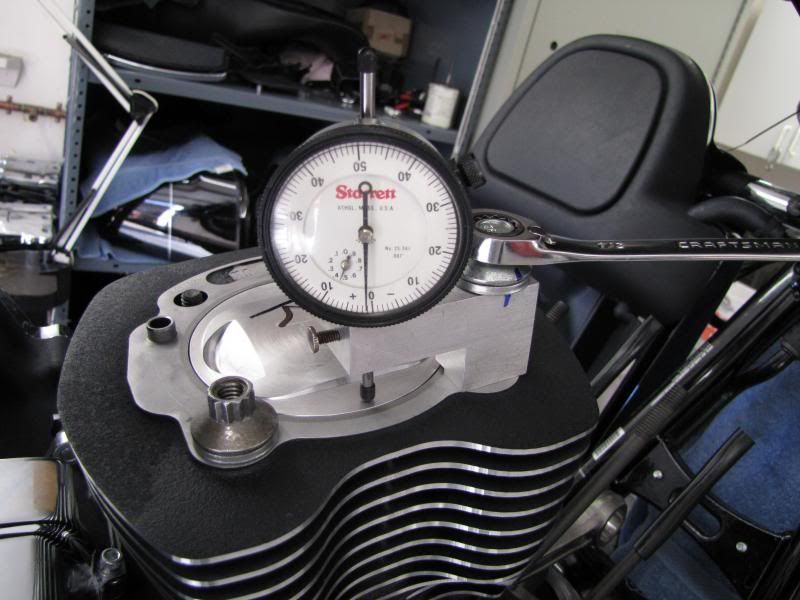

finished up my deck height bridge.......

[Durwood]

Lookin' Good Ed, Thanks for the pics BTW, have you done anything to the bagger?

[turboprop]

Post removed.

[hrdtail78]

Removed.

[turboprop]

Post removed.

[hrdtail78]

Removed

[No Cents]


I missed the pictures...

[Billy]

Back to your regular scheduled program.

I made this one years ago. Works great. Used it today.

[No Cents]

I just found this one sold by Randy @ Hyperformance on E-Bay.
It will do pinion shaft run out, piston TDC check,  piston jet pop off pressure, inter connect leak down.
It lists for $110.00 and includes the dial indicator.
It looks like a nice multi-use piece to add to the tool box.
I'm going to buy some aluminum and try to machine one like this...I like a multi-use tool like this one.

[attach=0]

[attachment removed after 60 days by system]

[Billy]

^^^ Nice tool

[hrdtail78]

I just found this one sold by Randy @ Hyperformance on E-Bay.
It will do pinion shaft run out, piston TDC check,  piston jet pop off pressure, inter connect leak down.
It lists for $110.00 and includes the dial indicator.
It looks like a nice multi-use piece to add to the tool box.
I'm going to buy some aluminum and try to machine one like this...I like a multi-use tool like this one.

[attach=0]

What does the hose on the left side do?

[AllanW]

Back to your regular scheduled program.

I made this one years ago. Works great. Used it today.

I like it, simple and accurate. Nice little step on the inside fro those pesky proud pistons.

[No Cents]

colder than a well diggers azz outside...so I fired up the torpedo heater out in the barn and starting making my multi use tool. I used my drill press as a milling machine with the cross wedge vise I have. I still need to drill and tap for a set screw to hold the caliper in place...but I like it so far.

[attach=0]



[attachment removed after 60 days by system]

[Deye76]

Nice work Ray.

[FSG]

I used my drill press as a milling machine with the cross wedge vise I have.

    it's surprising what can be done with the humble drill press.

[hrdtail78]

Looks nice.

[Durwood]

Good job Ray

[No Cents]


thanks guys...here is the finished tool.

[attach=0]

[attachment removed after 60 days by system]

[FSG]

    put some dims on the pic and we'll put it in the Home made Tools Section.

[hrdtail78]

Nice touch with the stamper.

[No Cents]

Nice touch with the stamper.

I put that on there as a joke

I thought someone might find it amusing.

[hrdtail78]

I like it.

[IronMike113]

Serial number #1 of #1 When And where do we place the order?

[AllanW]

King of cubes sells the one in the first photo, not the exact same gauge.

[FSG]

What are the plans for the air fitting?

[lonewolf]

Checking piston oilers.
