Pre-oiling lifters

Started by egstandard04, February 20, 2014, 02:49:08 AM

Previous topic - Next topic

0 Members and 3 Guests are viewing this topic.

Nowhereman

- From Nowhere in particular

N-gin

I'm not here cause of a path before me, Im here cause of the burnout left behind

gordonr

"If was easy everyone would do it"

gordonr

Quote from: FSG on February 20, 2014, 04:38:05 PM
Quote from: gordonr on February 20, 2014, 03:24:55 PM

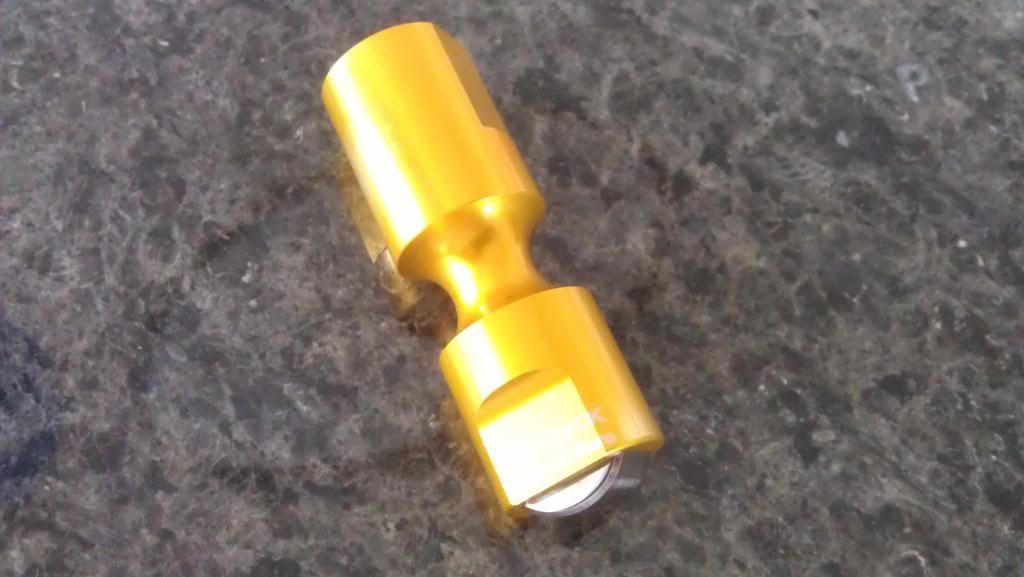

An Aluminum roller X By Schubeck.

Have you done anything with them ?


No I haven't. I need to over size my lifter bores and install cast steel sleeves to use them. I bought these after Schubeck closed his doors. He claimed he had them on a spintron and they worked great so I bought them, But not realizing at the time there are no replacements if theses go bad. I was also was shopping for Matrix Composite Pushrods but Ferrea stopped making them due to excessive expense. They make a two piece solid pushrod that wasn't available for purchase at the time I called though. If I don't get my desired output from this current build because of RPM limits I will revisit this idea of extreme weight reduction again.

Until I received these I didn't know they are hydraulic!
"If was easy everyone would do it"

UltraNutZ

Politicians are like diapers.
They need to be changed for the same reasons

Deye76

And here all this time I thought a "lifter jig" was a dance around the bike waving a rubber chicken.  :hyst:
East Tenn.<br /> 2020 Lowrider S Touring, 2014 CVO RK,  1992 FXRP

strokerjlk

Quote from: Deye76 on February 21, 2014, 04:57:05 AM
And here all this time I thought a "lifter jig" was a dance around the bike waving a rubber chicken.  :hyst:

jig
jig/
noun
1.
a lively dance with leaping movements.
2.
a device that holds a piece of work and guides the tools operating on it.
verb
1.
dance a jig.
synonyms:   dance, lively dance, skip, hop, prance More
move up and down with a quick jerky motion.
"we were jigging about in our seats"
synonyms:   dance, lively dance, skip, hop, prance More
2.
equip (a factory or workshop) with a jig or jigs.
3.
fish with a jig.
"a man jigged for squid"
Origin
mid 16th cent.: of unknown origin.
4
A ritualistic dance performed by a Harley  Davidson mechanic during overhead valve pushrod adjustment. this enthusiastic dance is perform immediately  after rolling the first lifter off of the cam lobe, and discovering the pushrod spins freely .
Usually followed by the O... F - me jig when moving to the next cylinder if installing Wood lifters .
A scientific theory summarizes a hypothesis
repeated testing establishes theory

UltraNutZ

Politicians are like diapers.
They need to be changed for the same reasons

TweekmyTwin

Kiss What ?

Sonny S.

Now that we have this covered what kind of oil ?   :hyst:

rageglide

Quote from: N-gin on February 21, 2014, 01:59:49 AM
http://m.youtube.com/watch?v=B-kWCLAjI6M

this is me do in mine

Cool idea.

You could also buy your wife a Food Saver for the kitchen and borrow it with the mason jar attachment.  Pull a vacuum on the jar and let it sit sealed for an hour or so.

UltraNutZ

Quote from: rageglide on February 21, 2014, 08:55:36 AM
Quote from: N-gin on February 21, 2014, 01:59:49 AM
http://m.youtube.com/watch?v=B-kWCLAjI6M

this is me do in mine

Cool idea.

You could also buy your wife a Food Saver for the kitchen and borrow it with the mason jar attachment.  Pull a vacuum on the jar and let it sit sealed for an hour or so.

too funny you mention this.  After seeing the video this morning , the first thing popped into my head was "she hates that foodsaver thing I bought her a couple of years ago and it's just taking up cabinet space".. so now it's taking up shelf space in the garage.
Politicians are like diapers.
They need to be changed for the same reasons

rageglide

hahah  My wife loves it.  Works pretty damned good too.

Grillfish

Quote from: N-gin on February 21, 2014, 01:59:49 AM
http://m.youtube.com/watch?v=B-kWCLAjI6M

this is me do in mine

I saw that video when I started having my lifter noise this week.  At first I thought you were soaking them in Apple Pie moonshine....
2009 Road Glide

N-gin

Quote from: Grillfish on February 21, 2014, 09:17:20 AM
Quote from: N-gin on February 21, 2014, 01:59:49 AM
http://m.youtube.com/watch?v=B-kWCLAjI6M

this is me do in mine

I saw that video when I started having my lifter noise this week.  At first I thought you were soaking them in Apple Pie moonshine....

funny you should mention that cause that's what was in there to begin with....that's good drink inright there
I'm not here cause of a path before me, Im here cause of the burnout left behind

Eglider05

Quote from: rageglide on February 21, 2014, 08:55:36 AM
Quote from: N-gin on February 21, 2014, 01:59:49 AM
http://m.youtube.com/watch?v=B-kWCLAjI6M

this is me do in mine

Cool idea.

You could also buy your wife a Food Saver for the kitchen and borrow it with the mason jar attachment.  Pull a vacuum on the jar and let it sit sealed for an hour or so.

:agree:

I love the Food Saver idea. We use the bags but not the vac containers. I will now.

UltraNutZ

hell for that matter.  just get a few sets of lifters, drop them in bags, put some oil, vacuum and seal the bags, put on a shelf.  ready for the next job.  :beer:
Politicians are like diapers.
They need to be changed for the same reasons

Deye76

#67
"A ritualistic dance performed by a Harley  Davidson mechanic during overhead valve pushrod adjustment."

:up: Thanks Jim,I nailed it.  :hyst:
East Tenn.<br /> 2020 Lowrider S Touring, 2014 CVO RK,  1992 FXRP

FSG

QuoteUntil I received these I didn't know they are hydraulic!

Have you dismantled one to take a peek inside?

gordonr

Quote from: FSG on February 21, 2014, 01:21:40 PM
QuoteUntil I received these I didn't know they are hydraulic!

Have you dismantled one to take a peek inside?

No I haven't, but if I have time tomorrow I will and send some pics.
"If was easy everyone would do it"

strokerjlk

Quote from: Deye76 on February 21, 2014, 01:08:28 PM
"A ritualistic dance performed by a Harley  Davidson mechanic during overhead valve pushrod adjustment."

:up: Thanks Jim,I nailed it.  :hyst:
Yes you did John .
In your neck of the woods , probably just use a real chicken .  :teeth:
A scientific theory summarizes a hypothesis
repeated testing establishes theory

HD/Wrench

I would not use those. We tried them , and they ruined a lifter bore. They went about 11 miles before trying to seize. This was almost 2 years ago now. I just tossed them when we moved. I may have a old picture of the damage. .

Deye76

Quote from: Gmr-Performance on February 22, 2014, 06:09:11 AM
I would not use those. We tried them , and they ruined a lifter bore. They went about 11 miles before trying to seize. This was almost 2 years ago now. I just tossed them when we moved. I may have a old picture of the damage. .

I remember that.
East Tenn.<br /> 2020 Lowrider S Touring, 2014 CVO RK,  1992 FXRP

gordonr

Quote from: Gmr-Performance on February 22, 2014, 06:09:11 AM
I would not use those. We tried them , and they ruined a lifter bore. They went about 11 miles before trying to seize. This was almost 2 years ago now. I just tossed them when we moved. I may have a old picture of the damage. .


Did you sleeve the lifter bore? Aluminum On Aluminum  would be a disaster.
"If was easy everyone would do it"

No Cents

the fastest and easiest way I found was to get a 12" long piece of clear hose @ your local hardware store that fits over the top of the lifter.
Completely submerge the lifter into a cup of oil with the hose attached onto the top of the lifter. Take a shop vac and place it over the other end of the clear hose. I take a shop rag and wrap it around the end of the clear hose and the shop vac end for a good seal. Turn the shop vac on and watch for the air and oil to come out of the lifter cup. Once you see the hose filling up with oil over the top of the lifter cup...it's pre-loaded with oil and ready to install.
It takes less than a minute to pre-load a lifter this way.
08 FLHX my grocery getter, 124ci, wfolarry 110" heads, Burns pipe, 158/152 sae
